Mini bottle filling Touch screen Peristaltic Pump

Ask Lasest Price
Brand Name :	CR
Model Number :	BT100FC
Certification :	CE ISO9001
Price :	USD450/PCS
Payment Terms :	T/T
Supply Ability :	1000PCS/month
Delivery Time :	8

Add to Cart

Product Details
Company Profile

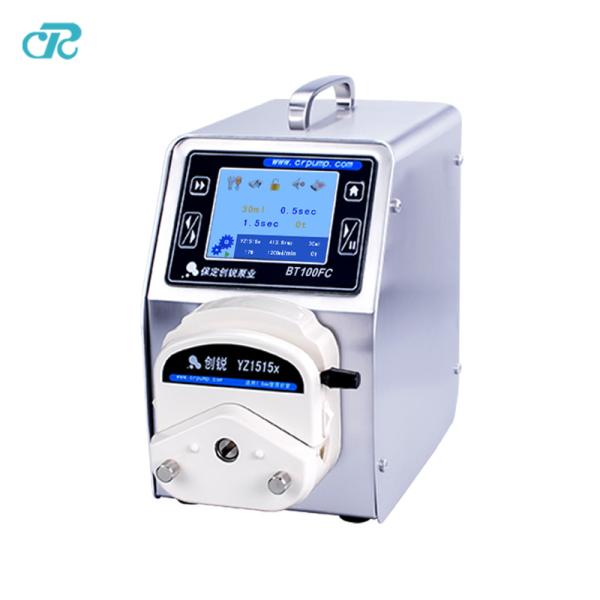

Mini bottle filling Touch screen Peristaltic Pump

Model: BT100FC/YZ1515x

Speed range: 0.1-100 rpm Flow range : 0.007-380ml/min Max Number of Channel: 2 Power supply: AC 110V or AC 220V Ideal lab scale vials filling pump

With touch screen setting

With Calibration function to ensure the precise

Support foot pedal Control

Support hand dispenser

CE certified product based on request.

BT100FC is a peristaltic pump as a small filling machine, The max speed is 100rpm, with

max flow rate 380ml/min.The speed revolution of it is 0.1rpm, it is a stepper motor peristaltic pump with high precision. As a dispensing pump, customers can set the filling data such as filling volume, filling time, interval time and copy numbers as requirement, it is a programmable peristaltic pump, Inside there is CR control board. Also support RS485/RS232/MODBUS communication protocol, analog quality control(0-5V,0-10v, 4-20mA,) foot pedal control.
BT100FC, can be used as a small bottle filling pump. If the bottle volume is small, BT100FC is a best choice with high cost-effective. It can fill various liquid which is similar with water, such as eye drop, perfume, nasal irrigation water, etc.
CR smart filling peristaltic pump is one of the best choice for vial filling

There are many filling applications of FC series peristaltic pumps, which permeate all aspects of our lives. The effect of filling peristaltic pumps with direct filling and hand-held dispensers is better.

Parameter Model : BT100FC/YZ1515x
Parameter Model : BT100FC/YZ1515x
Speed	0.1-100rpm
Speed resolution	0.1rpm
Flow rate	0.007-380ml/min
Filling volume range	0.1ml-9999L
Filling time range	0.1s~9999min
Pause time range	0.1s~9999min
Copy number	0-9999 t
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model ,pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range(ml/min)
18#	7.9	11.1	Silicon tube	0.38-380
17#	6.4	9.6	Silicon tube	0.29-290
25#	4.8	8	Silicon tube	0.17-170
16#	3.2	6.4	Silicon tube	0.082-82
19#	2.4	5.6	Silicon tube	0.051-51
14#	1.6	4.8	Silicon tube	0.027-27
13#	0.8	4	Silicon tube	0.007-7

Mini bottle filling Touch screen Peristaltic Pump
