    cosmetic pharmaceutical chemical sauce shampoo peristaltic pump

    Ask Lasest Price
    Brand Name : CR
    Model Number : UTF01
    Certification : CE ISO9001
    Price : USD1500/PCS
    Payment Terms : T/T
    Supply Ability : 1000PCS/month
    Delivery Time : 8
    • Product Details
    • Company Profile

    cosmetic pharmaceutical chemical sauce shampoo peristaltic pump

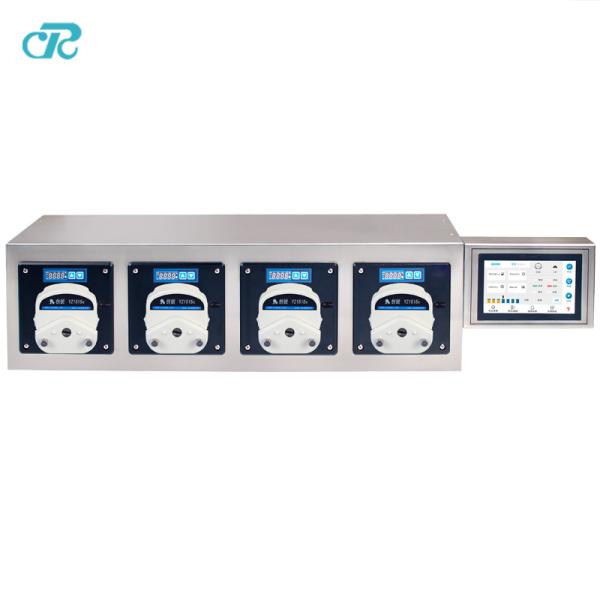

    UTF01 is a filling peristaltic pump independently developed by Chuangrui Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels (2 3 4 5 6 optional), which can be expanded up to 32 channels. UTF01 can be installed with multiple types of pump heads and adapted to multi-specification tubes, which can fully meet customer application needs and provide more flow selection. Various functions, large screen display, touch screen operation, accurate flow, make filling production more peace of mind. Multiple channels can be opened at the same time for liquid filling, or the filling value of each channel can be set individually for filling. Support customized solutions.
    Specifications
    Model
    UTF01
    Pump head
    YZ1515x
    Channel number
    4 is standard
    Max 32 channels
    Pump head in series
    1 is standard
    Max 2 heads for each channels
    Filling volume
    0.1ml-9999.99ml/time
    Display adjustment resolution: 0.01ml
    Filling time
    0.1s-9999.9s/time
    Display adjustment resolution: 0.1s
    Filling times
    0-9999time
    "0" is an infinite loop
    Back suction speed
    0-1000°
    Display adjustment resolution: 1°
    Back suction delay
    0-300rpm
    Display adjustment resolution: 1rpm
    Interval time
    0.5s-9999.9s/time
    Display adjustment resolution: 0.1s
    Channels number
    channel / unit (standard),23456 channel / unit (optional)
    Scalable up to 32N4
    Back suction delay
    0s-60s
    Display adjustment resolution: 0.1s
    Power supply
    220v or 110v optional
    External Control
    start-stop cable // No bottle no filling function can work with your sensor or PLC.
