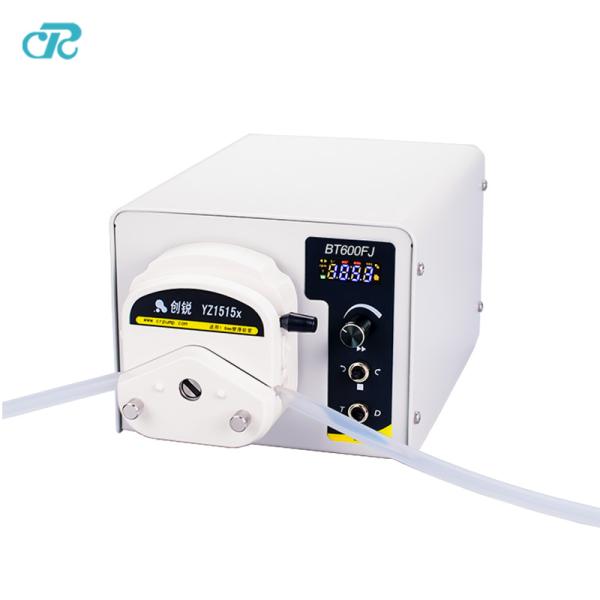

    Dispensing Peristaltic Pump For Granulating Coating Machine

    Ask Lasest Price
    Brand Name : CR
    Model Number : BT600FJ
    Certification : CE ISO
    Price : USD550/PCS
    Payment Terms : T/T
    Supply Ability : 1000PCS/month
    Delivery Time : 8
    • Product Details
    • Company Profile

    Dispensing Peristaltic Pump For Granulating Coating Machine

    Model: BT600FJ/YZ1515x

    Speed range: 0.1-600 rpm Flow range : 0.007-2280ml/min Max Number of Channel: 2 Power supply: AC110V or AC220V Basic type liquid constant peristaltic pump with Flow reversible Metal housing with anti-corrosion paint treatment, prolong pump life time. Good electromagnetic compatibility, ensure stable and reliable operation CE certified product based on request.
    Since the liquid delivered by the peristaltic pump constant flow pump only touches the hose, it is very clean. Except for the peristaltic pump hose, there are no other wearing parts. Only a short section of hose on the peristaltic pump pump head can be used continuously for more than 500 hours, and the replacement only takes less than 1 minute, which is very convenient for the operator. carry out. The accuracy of the peristaltic pump to adjust the liquid is very high, which can reach 0.5-1%, which is very conducive to the constant delivery of the liquid during the granulation and coating process. After a long period of trial and comparison, the products of the peristaltic pump have met the needs of customers in terms of appearance, accuracy and durability test. Now almost all granulator factories and end users are gradually replacing gear pumps and adopting more reliable and cleaner peristaltic pumps.
    Parameter Model : BT600FJ/YZ1515x
    Noted :The rpm display is the defaulted mode.If you need flow display, pls contact our sales to customized the program.
    Speed
    0.1-600rpm
    Speed resolution
    0.1rpm
    Flow rate
    0.007-2280ml/min
    Display
    4-LED display
    Speed control model
    Rotary encoded switch control speed
    Power supply
    AC220V±10%(standard) or AC110V±10%(optional)
    External control
    Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
    Communication interface
    RS232 and RS485, support MODBUS protocol mode
    Foot pedal
    Yes
    Power
    <50W
    Tube specifications for the pump head YZ1515x(black is defaulted)
    Noted : The standard tube which will come with the pump is model 18#, If you need other tube model ,pls contact our sales in advance.
    Tube model
    ID(mm)
    OD(mm)
    Standard material
    Flow range (ml/min)
    18#
    7.9
    11.1
    Silicon tube
    0.38-2280
    17#
    6.4
    9.6
    Silicon tube
    0.29-1740
    25#
    4.8
    8
    Silicon tube
    0.17-1020
    16#
    3.2
    6.4
    Silicon tube
    0.082-492
    19#
    2.4
    5.6
    Silicon tube
    0.051-306
    14#
    1.6
    4.8
    Silicon tube
    0.027-162
    13#
    0.8
    4
    Silicon tube
    0.007-42
